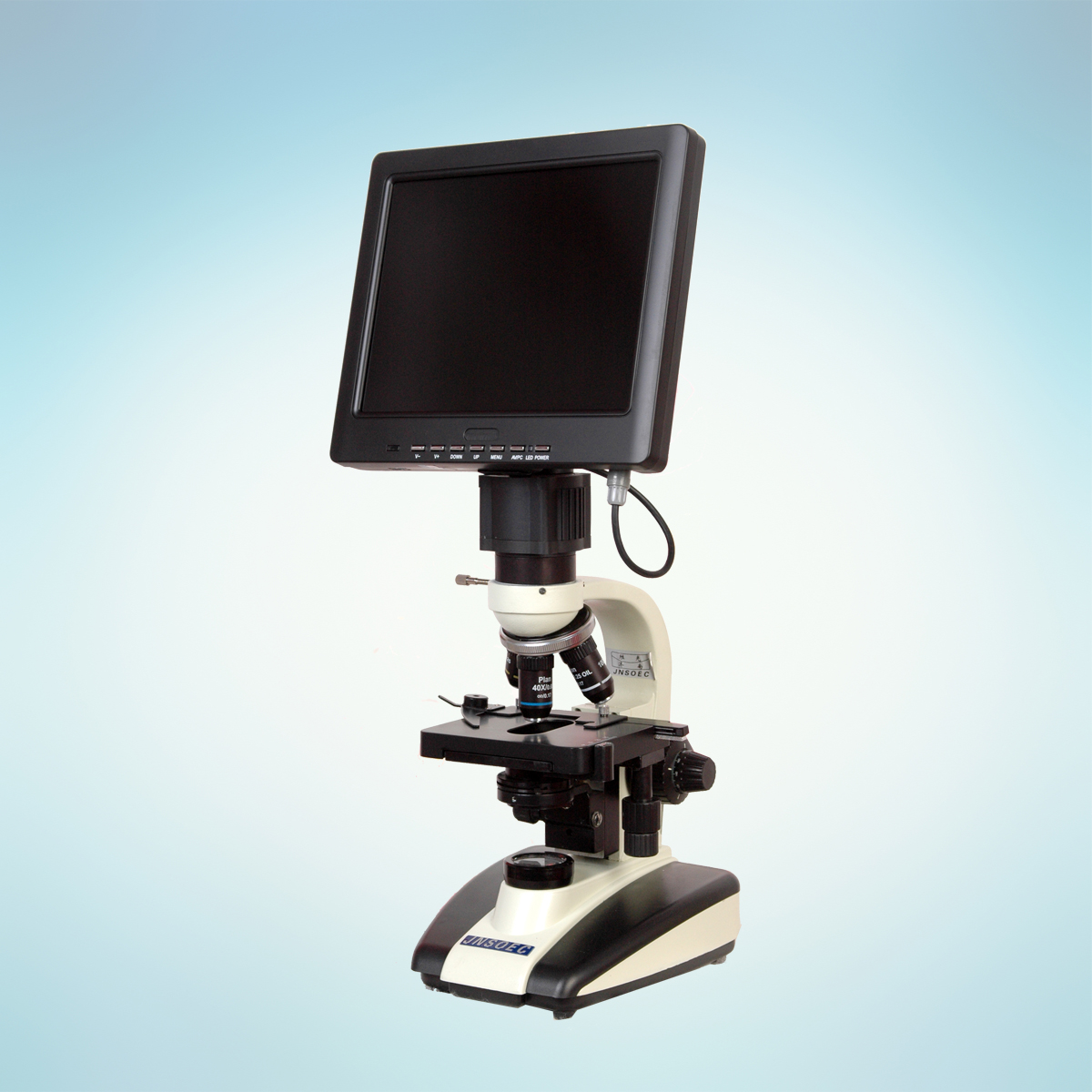

Digital Microscope BXTV-Series
Digital Microscope BXTV-Series
Image Sensor |
1/3 SONY CCD |
Video Output |
BNC 1.0VP-P.75 |
Signal System |
PAL/NTSC |
Backlight Compensation |
OFF/ON |
Scanning frequency |
Horizontal:15.62KHz Vertical:50Hz |
Electronic Shuttle |
AUTO IRIS EE |
Horizontal Resolution |
|
Camera Interface |
CS |
Min Illumination |
F1.2 0.5LUX 0.01 LUX |
Balance |
Auto |
Power Consumed |
50db AGC |
Gain control |
Auto |
48S/N Ratio |
|
Power |
DC 12V |
Models
|
Specification |
Model |
|||||
BKTV-1 |
BKTV-1A |
BKTV-1B |
BKTV-1C |
BKTV-1D |
BKTV-1E |
||
Viewing Head |
Sliding Trinocular HeadInclined at 45˚ |
* |
* |
|
|
|
|
Compensation Free Trinocular Head inclined at 30˚ |
|
|
* |
|
|
|
|
10˚ LCD |
|
|
|
* |
* |
* |
|
Nosepiece |
Ball Beating Quadruple Nosepiece |
* |
* |
* |
* |
* |
* |
Eyepiece |
WF10X18mm |
* |
* |
* |
* |
* |
* |
Objective |
Achromatic 4X,10X,40X(S)100X(S,O) |
* |
* |
|
|
* |
* |
Plan Achromatic 4X,10X,40X(S)100X(S,O) |
|
|
* |
Optional |
|||
Stage |
Double Layer Mechanical Stage 135*140mm |
* |
* |
* |
* |
* |
* |
Condenser |
Abby NA1.25 condenser with Iris Diaphragm &filter,rack&pinion adjustable |
* |
* |
* |
* |
* |
* |
Illumination |
Build-in Illumination,Halogen lamp6V/20W,Power supply 90-230V |
* |
* |
* |
* |
* |
* |
Package |
Each set in styrofoam,to cartoon for safety |
* |
* |
* |
* |
* |
* |
