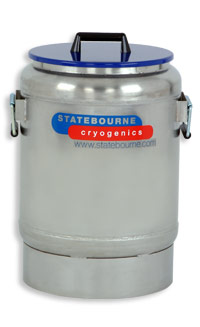

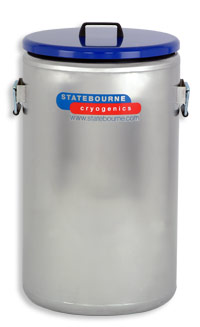

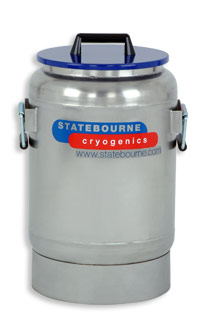

Laboratory Open Dewars OD Maxi Series
Product code:
OD Maxi Series
Features:
A Maxi range of stainless steel Open Dewars for laboratory process, bench top and industrial freezing applications provides
capacities from 15 litres to 80 litres.
Of exceptionally strong stainless steel construction, these dewars are ideal for use as cold traps,for immersion or simply for
temporary liquid storage.
All models are supplied with insulating lids and either swivel or fixed carry handles.
Roller base available for Maxi 15, 25, 80
Technical Specification:
Technical Data | |||
MODEL | OD Maxi 15 | OD Maxi 25 | OD Maxi 80 |
PART NUMBER |
9915080 | 99150890 | 9915115 |
Volume Liters | 18 | 31 | 66 |
Empty Wt Kg | 13 | 15 | 28 |
Full Wt Kg | 27.5 | 40 | 81 |
Int Diameter mm | 260 | 327 | 406 |
Internal Height mm | 370 | 400 | 513 |
Exterior Diameter mm | 333 | 385 | 460 |
Exterior Height mm | 565 | 595 | 777 |
Roller Base Part Number |
9915082 |
9915092 | 9915125 |
Perforated Basket | 9915086 | 9915096 | 9915117 |
Perforated baskets available
for the Open Dewar series see Data.
