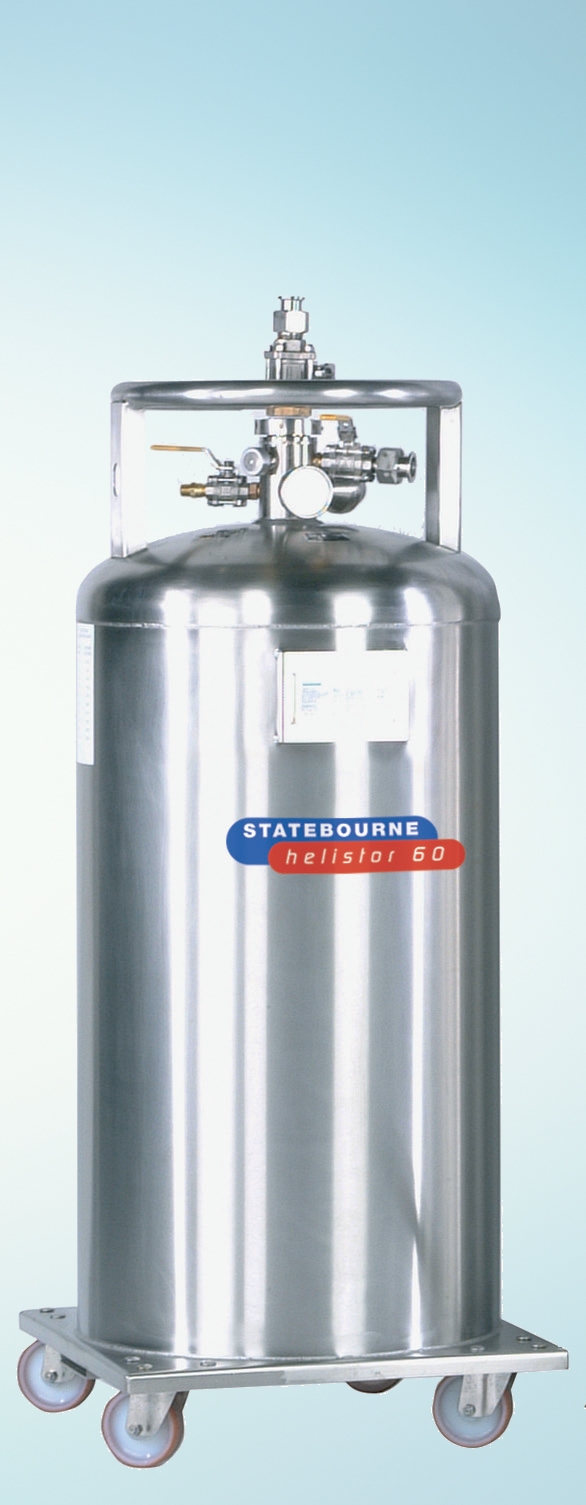

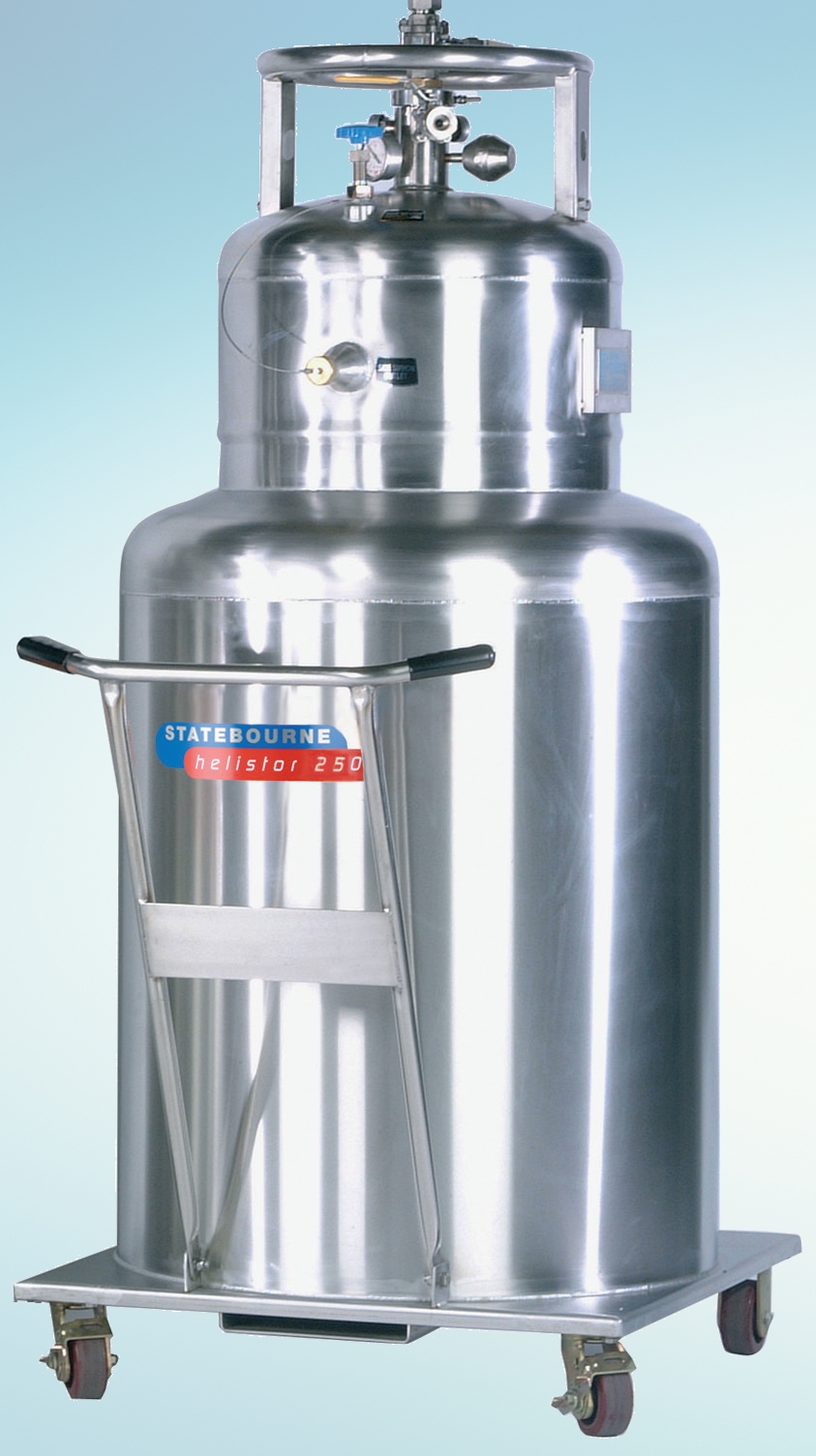

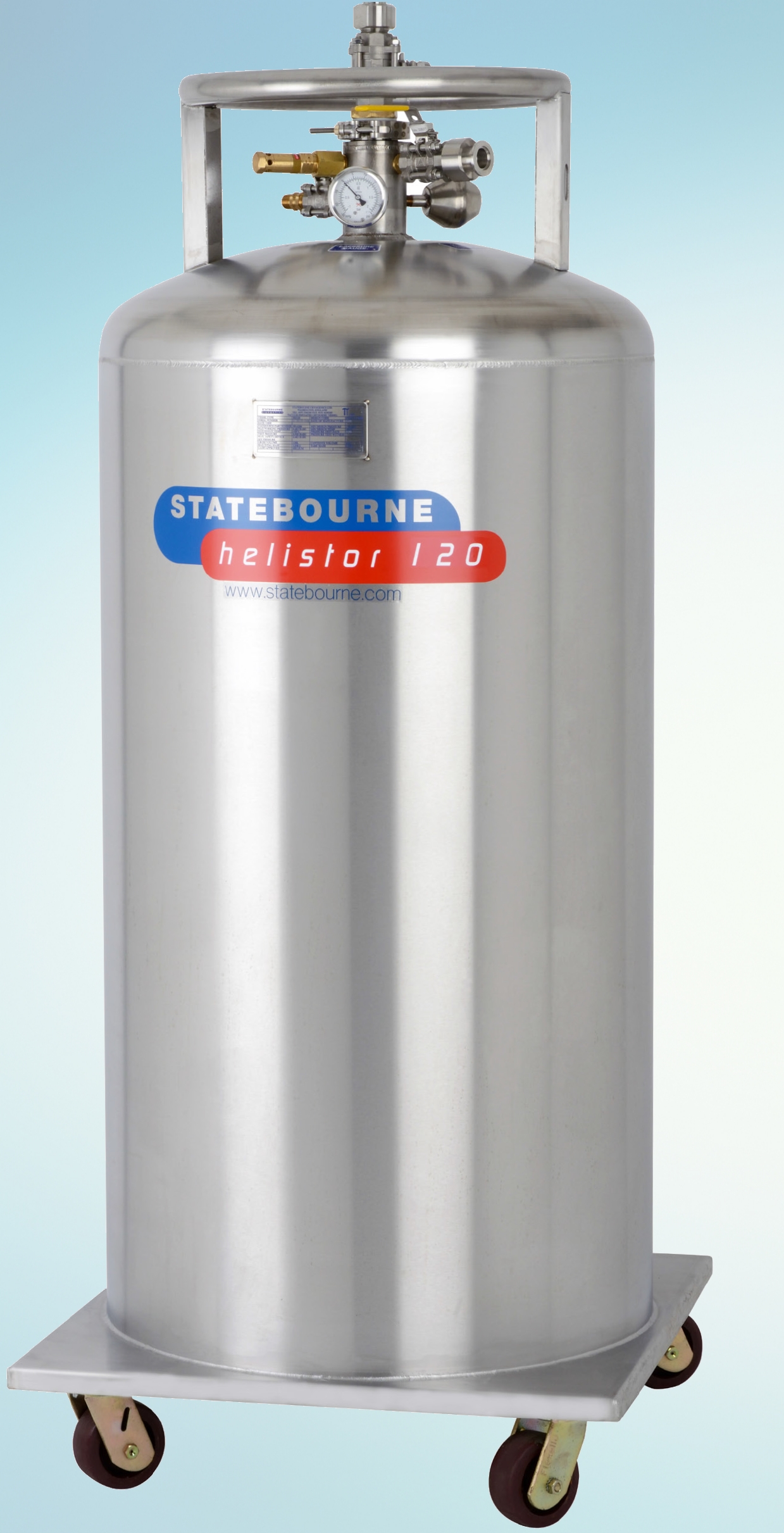

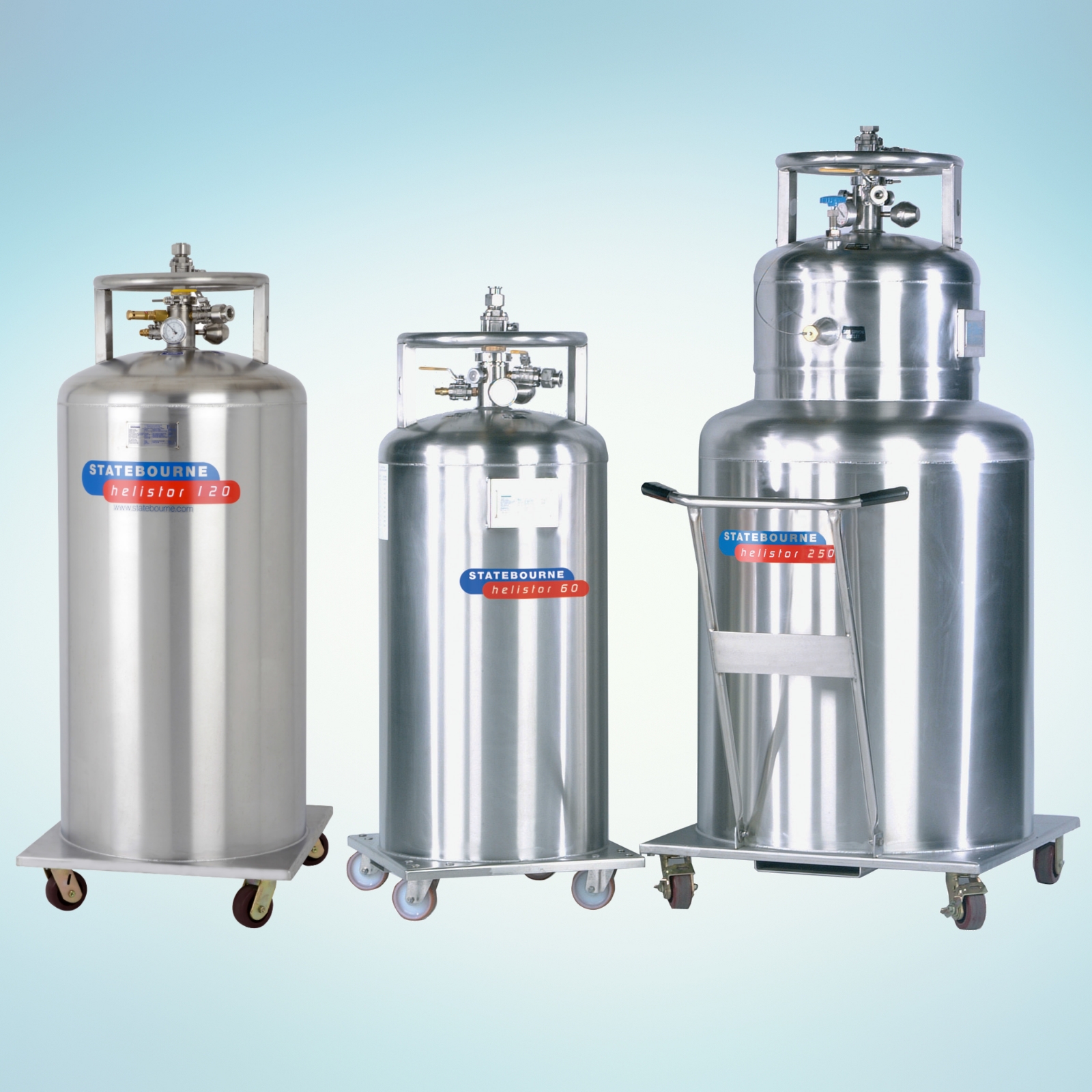

Liquid Helium Dewars
Product code:
Helistor Series
Features:
Stainless steel Liquid Helium Dewars for Storage and Transport
Price (USD): Contact Us
Features:
- All Stainless Steel Construction
- Electronic or DP level gauges available
- 30 - 10,000 Litres
- 3 Year Vacuum Warranty
- Castor mounted for ease of movement
- Non Magnetic models available
- Permanent siphon available on larger models
- Special sizes available on request.
- Complete range of siphon transfer lines available
- Permanent centrefill siphons available
- Fork Lift Base on selected models
- TPED
Technical Specification:
| T e c h n i c a l D a t a | |||||||||
| MODEL | Helistor 30 | Helistor 60 | Helistor 100 | Helistor 120 | Helistor 250 | Helistor 500 | Helistor 990 | Helistor 250C | Helistor 400C |
| PART NUMBER | 9914005 | 9914010 | 9914045 | 9914065 | 9914075 | 9914085 | 9914085 | 9914076 | 9914086 |
| Liquid Capacity Litres | 30 | 60 | 100 | 120 | 250 | 500 | 990 | 250 | 400 |
| Evaporation Rate (litres/day) | 2.0 | 1.0 | 0.9 | 0.8 | 0.8 | 0.7 | 1.0 | 1.0 | 1.0 |
| Diameter (mm) | 537 | 537 | 640 | 640 | 793 | 1075 | 1310 | 793 | 1075 |
| Overall Height (mm) | 1147 | 1326 | 1463 | 1543 | 1731 | 1846 | 1995 | 1520 | 1520 |
| Weight Empty Kg | 52 | 60 | 98 | 104 | 154 | 250 | 444 | 146 | 210 |
| Weight Full Kg | 56 | 67.5 | 110.5 | 119 | 185 | 313 | 568 | 177 | 260 |
