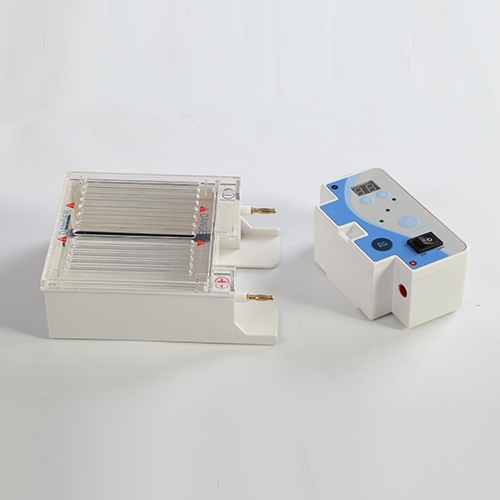

Mini-Electrophoresis System

Product code:
Mini-ES
Features:

Mini-Electrophoresis System

Mini-ES Mini Electrophoresis System is specifically designed for DNA and RNA electrophoresis. Voltages 35V/50V/100V, compact, lightweight and easy to operate are its features. A magnetic sensor allows current to flow to the electrodes only when the lid is in place. If the lid is removed while the system is operating, it will be shut down immediately. It's ideal for many applications, including Northern and Southern blotting, Cosmid library restriction analysis microsatellite analysis PCR fragment analysis, DNA fingerprinting and high-throughput analysis.

Features

  • Input Power: AC100~120V 50~60Hz or AC220~240V with transformer 50~60Hz
  • Output Power: DC35V/DC50V/DC100V
  • Bath Dimensions (WxDxH): 110x121x43mm
  • Volume of Bath: 230ml
  • Construction of Bath: PC+ABS with high temperature resistance
  • Max.Power:40W
  • Timer range:1min~99min
  • Overall Dimensions (WxDxH):190x130x60mm​

AS-14010-00       Mini-ES1 AC100~120V 50~60Hz
AS-14020-00        Mini-ES2 AC200~240V 50~60Hz



Technical Specification:
MODEL Mini-ES
 Input Power  Mini-ES1: AC100~120V 50~60Hz
 Mini-ES2: AC220~240V with transformer 50~60Hz
 Output Power  DC35V/DC50V/DC100V
 Bath Dimensions (WxDxH)  110x121x43mm
 Volume of Bath  230ml
 Construction of Bath  PC+ABS with high temperature resistance
 Max.Power  40W
 Timer  1~99min
 Dimensions(mm)  190x130x60m
Accessories
Tooth wide(width x thickness x no) 3mmx1mm x 22/ 5.6mmx1mmx12/ 3mmx1mmx18/ 5.6mmx1mmx10
Gel Dimension (WxD)mm 126x126mm-1pcs
Gel Migration Board (WxD)mm 110x60mm-2pcs/54x60mm-4pcs
