Open Dewars Biostor

Product code:
Biostor Series
Features:

Wide Neck Refrigerators
Biostor refrigerators provide a low cost alternative to the Biosystem Series.

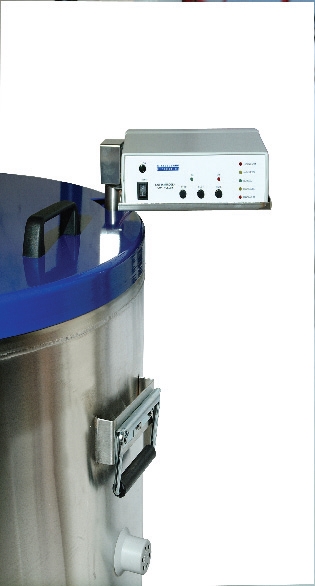

The Biostor 12 and 24 are supplied with built in liquid nitrogen fill and level sensor tubes to
allow the addition of an Auto-fill Kit using a suitable Cryostor as a reservoir.
Level sensors can be set to control liquid levels giving either liquid or vapour phase storage
and temperatures as low as -185C can be achieved at warmest point of sample storage

Technical Specification:





Technical Data

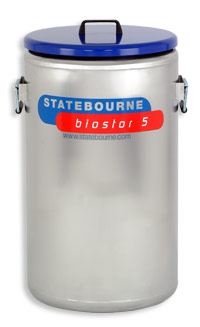

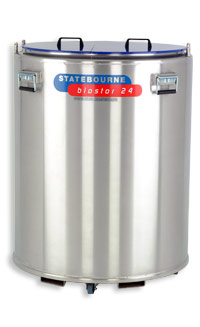

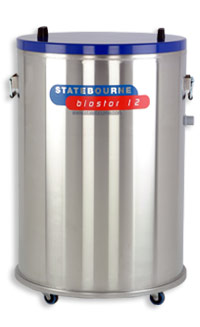

MODEL Biostor 5 Biostor 12 Biostor 24

PART NUMBER

9915120 9916027 9916065
 Volume Liters 66 220 380
 Empty Wt Kg 28 125 162
Full Wt Kg

 81

303  469
Int Diameter mm

406

617  788
 Internal Height mm

513

745 835
Exterior Diameter mm

460

750  900
Exterior Height mm  777 1141 1193
Roller Base Part Number

9915125

 -
 Autofill Kit Part number -  9701042        970104
