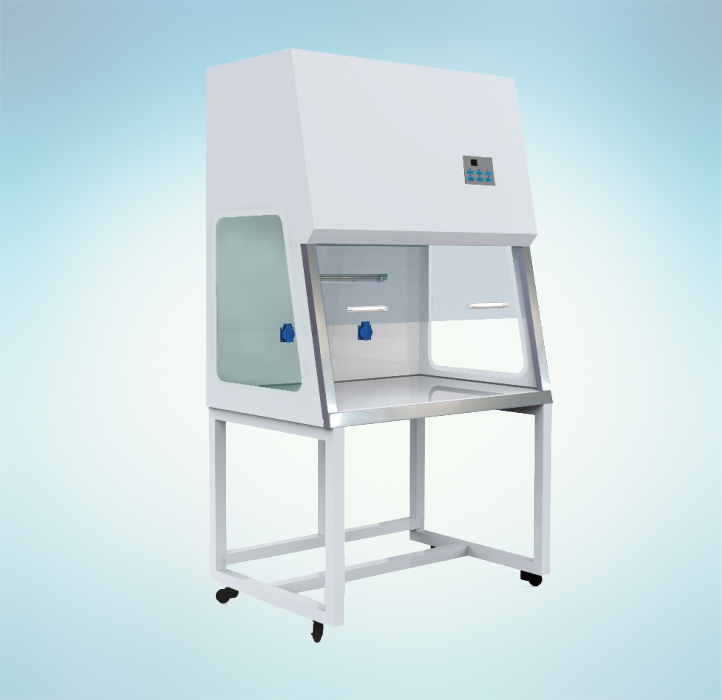

PCR cabinet

Product code:
PCR-01
Features:

ADVANTAGE:

1. LED display.

2. UV sterilization system.

3. HEPA filter efficiency 99.999% at 0.3μm.

4. Interlock function: UV lamp only can be switched on

when the front window is closed, ensuring operator safety.

5. UV timer (1-99 minutes): When the setting time expires,

the UV lamp automatically switches off in preparation for

 the next experiment.

Technical Specification:



Models

Model

PCR-01

External Size (W*D*H)

1000*705*1770mm

Internal Size (W*D*H)

900*595*560mm

Work Surface Height

750mm

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel

Front & Side Windows

5mm toughened glass , anti-UV

Manual front window

Max Opening

320mm

Pre-filter

Polyester fiber, Washable

HEPA Filter

99.999% efficiency at 0.3μm.

Airflow Velocity

0.3-0.5m/s, speed adjustable

Noise

≤60dB

UV Lamp

20W*2

Emission of 253.7 nanometers, with UV timer

Fluorescent Lamp

40W*1

Illumination

>1000Lux

Shelf with IV bar

Stainless steel, 495*140*55mm (W*D*H)

caster

Universal caster with leveling feet

Consumption

380W

Waterproof Socket

Two, total load≤500W

Power Supply

AC 220V±10%, 50/60Hz;110V±10%,60Hz

Standard Accessory

UV lamp*3, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar

Gross Weight

150kg

Package Size (W*D*H)

1160*920*1350mm
