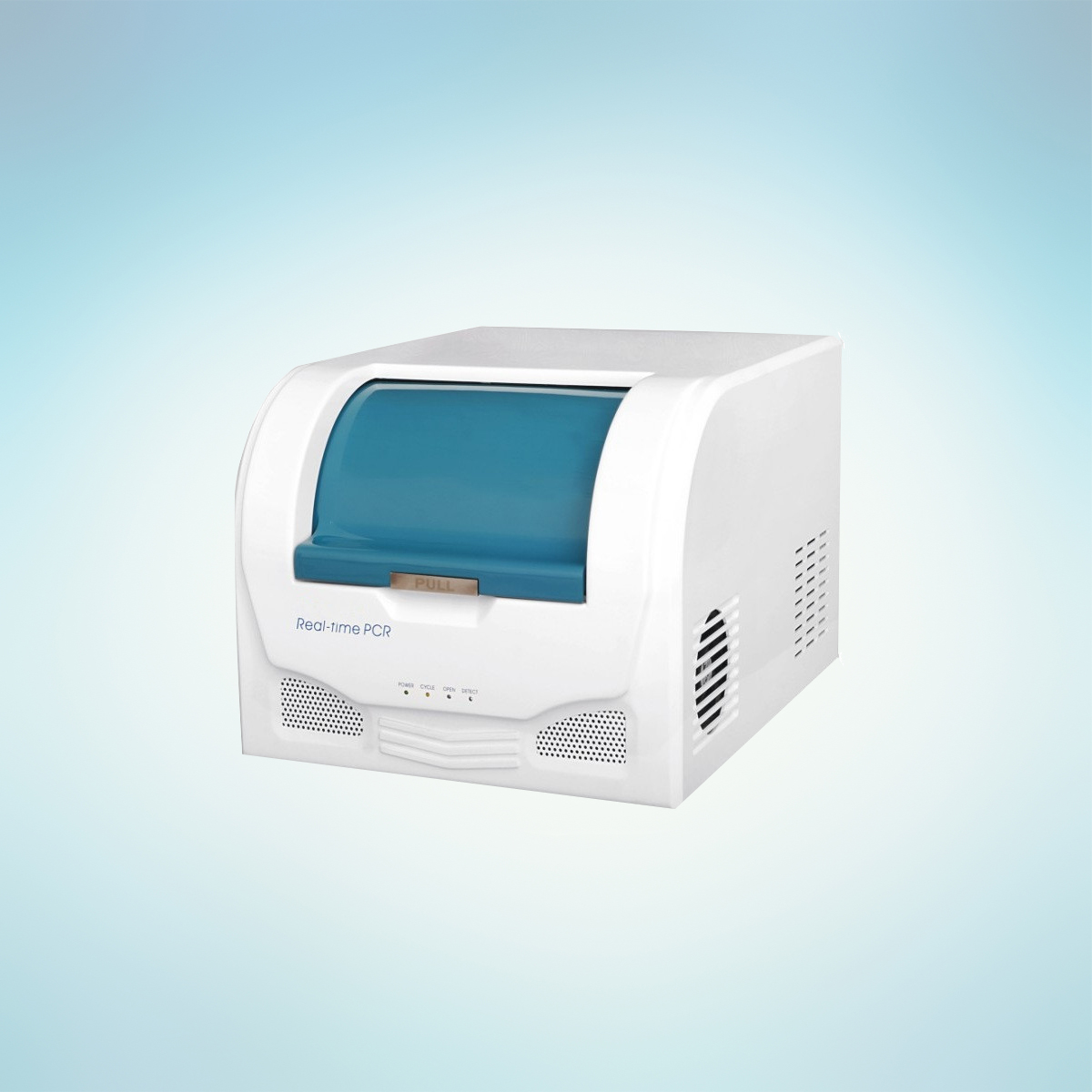

Real-time Quantitative PCR (4 channel)

Product code:

BIO-EII

Features:

Real-time Quantitative PCR (4 channel)

[Bookmark and Share] With capacity of 96 sample positions and touch screen, the 4 channel real-time PCR has more better heating/cooling rate and more precise temperature control.

Applications:

1.Diagnosis of clinical disease.

2.Diagnosis of animal disease.

3.Food security.

4.Science and research.

Technical Specification:

Models

Model	BIO-EII
Sample capacity	96,include positive and negative control
Micro plate type	96 well plate
Reaction Volume	5~50ul
Detector	Photodiode
Optical system	Highlight LED light source
Temperature range	4℃~99℃
Lid temperature	100℃~120℃
Heating/cooling rate	0.1~4.2℃/s
Temperature uniformity	<+0.2℃
Temperature accuracy	<+0.1℃
Testing range	101-1010 DNA/RNA copy/ml
Reproducibility	CV<2.1%
Correlation coefficient of nucleic acid precision	R>0.997
Temperature steps	1~99
Cycles	1~999
Hold time	4℃long-term
Excitation wavelength	Channel 1: 470nm Channel 2: 523nm Channel 3: 571nm Channel 4: 630nm
Emission wavelength	Channel 1: 525nm Channel 2: 564nm Channel 3: 512nm Channel 4: 670nm
Display	7 inch full-color touch screen
Power supply	AC 220/110V+10% ,50/60Hz+10%
Power consumption	1100W
Dimensions(WD H)	540300480mm
Weight	35kg

Related Products

Real-time Quantitative PCR

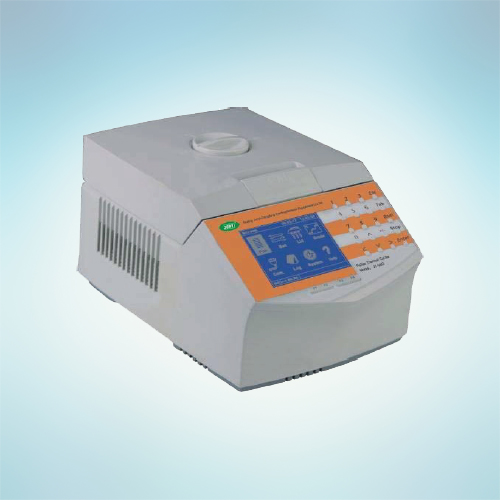

Gradient PCR
