VISCOMETER VP 1000

Product code:
VP1000 series
Features:

HAND ROTARY VISCOMETER

The first portable rotary viscometer acc. To Brookfield Method

allows quick determination of viscosity during production process. Along with his intuitive an easy functionality and his light weight, this instrument provides great versatility. Its main feature, the compatibility to the Brookfield method, allows comparative measurements with results obtained in quality control laboratories using standard rotary viscometers.

It is also possible to use the VP 1000 as a bench instrument by ordering separately the stand.

Small and ergonomic battery operated instrument: Userfriendly: Just press one key – ENTER – to begin with rotation and measurement, to stop motor and to enter into the spindle selection screen.

Viscosity reading is shown in screen together with full scale %. Instrument displays maximum measurement range for each selected spindle (FSR), allowing end user to select easily the most appropriate spindle for each specific application.

MYR portable viscometer VP 1000 is used to measure viscosity in samples from different industrial sectors.

Technical Specification:

Displayed data

Speed rpm (depending on the version)
Spindle selected R2-R7 (R1 as option)
Dynamic viscosity mPas
Full scale percentage %
Full scale range (FSR) mPas
Battery status warning with self-disconnection

Viscosity range

MODEL SPEED VISCOSITY RANGE VISCOSITY RANGE (R1)
VP 1020 20rpm 200 - 200.000mPas 50 - 500mPas
VP 1030 30rpm 130 - 133.300mPas 33 - 333mPas
VP 1050 50rpm 80 - 80.000mPas 20 - 200mPas
VP 1060 60rpm 66 - 66.600mPas 16 - 166mPas

Accuracy ± 2%full scale range
Repeatability ± 1%

TECHNICAL DETAILS

Alkaline battery 4 x AA/LR6 (6V) 1900 mAh / Alkaline
Rechargeable battery 4 x AA/R6 (6V) 2.500 mAh / Ni-Mh
Autonomy 24-30 hours non-stop use
Weight 1.150 g
Protection classification IP 20

SCOPE OF DELIVERY

Basic delivery includes

- Viscometer
- Spindle protector

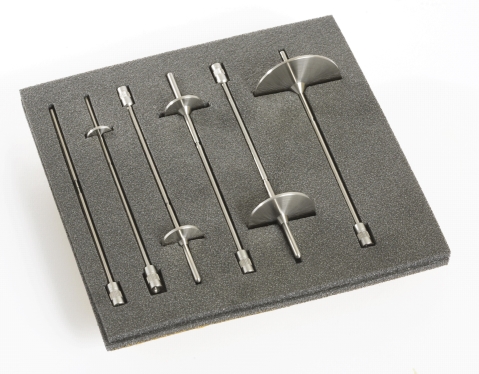

- Complete set of spindles (R2-R7)
- Alkaline batteries
- User manual
- Carrying case

ACCESORIES

STAND

SPINDLE R1

STORAGE RACK
