Five Channel Flame Photometer

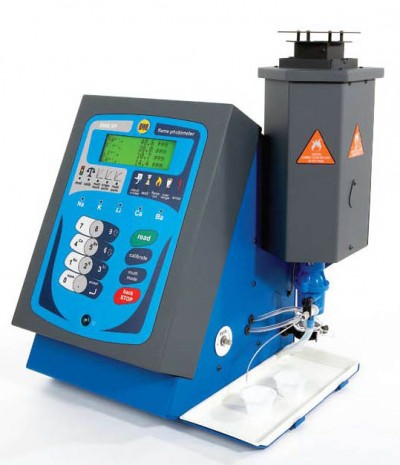

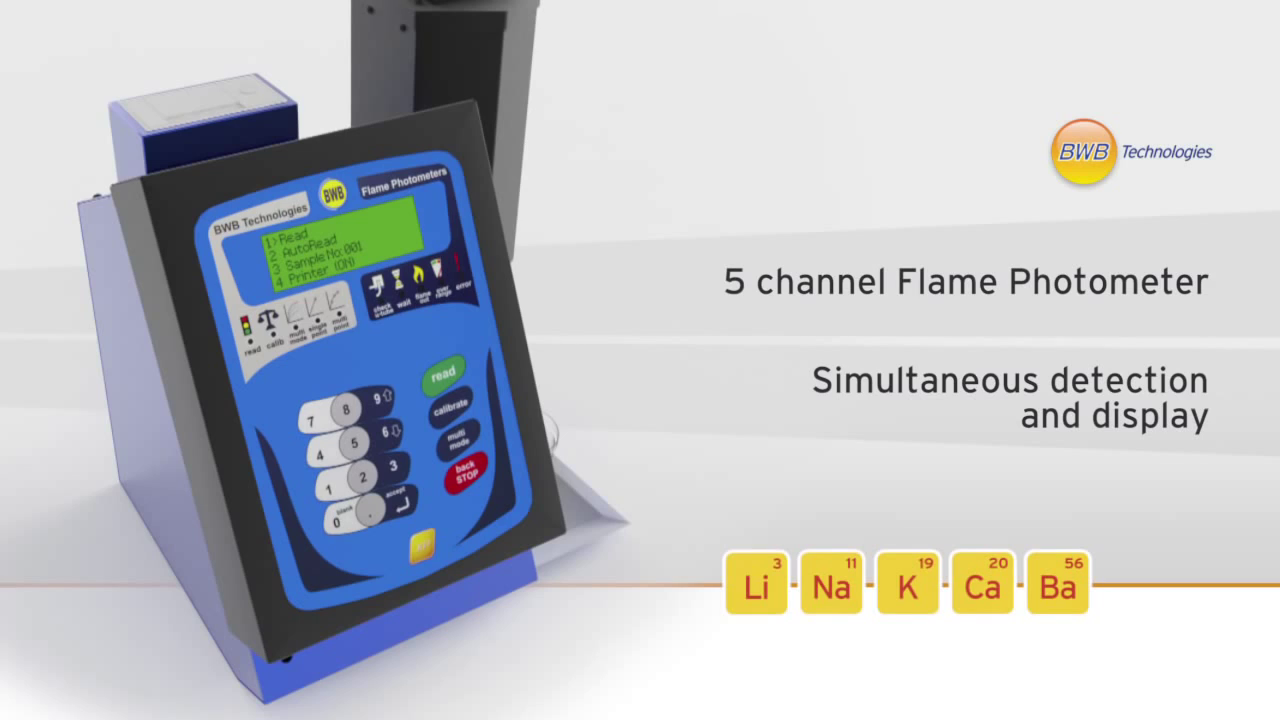

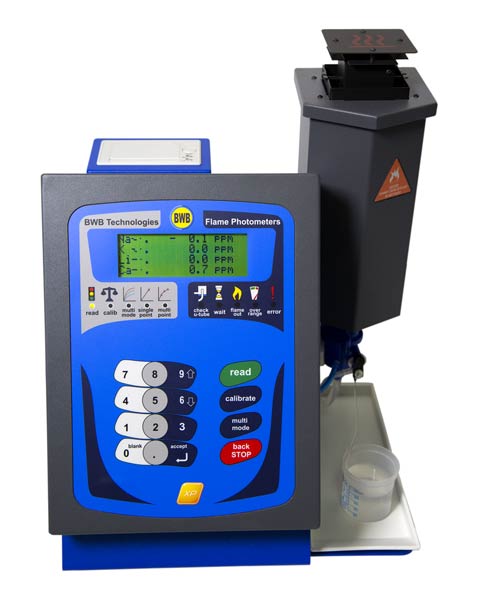

BWB-XP 5 Channel Flame Photometer
Complete with Na, K, Li, Ca, & Ba filters fitted.
- Simultaneous detection and display of all 5 elements.
Dual Mode for Na & K* 2 or multi point calibration.
Flame out detection & automatic shut down and
Diagnostic indicators.
- PC interface ports.
Complete with drain trap, drip tray, connecting tubes,
built-in air compressor, operating manual, FP-PC
software (with interface cable) and starter pack which
includes diluent concentrate (500ml)
Sodium Standard 10,000ppm (150ml)
Potassium Standard 10,000ppm (150ml)
Lithium Standard 10,000ppm (150ml)
Calcium Standard10,000ppm (150ml)
Barium Standard 10,000ppm (150ml)
Cleaning solution (1ltr), together with 1ml and 10ml
Pipettes (qty 10each), 100ml Volumetric Flasks (qty 1),
Sample Cups.(100V-250V, 50/60Hz)
Manufactured by BWB Technologies UK Ltd.
Linearisation
Included in the software, and available on any of the 5 elements.
Achievable on both single and multi point calibrations.
Aspiration Rate
3-5.5ml/min
Optimal Range
Single Point Calibration Multi Point Calibration
Na - 0.05 - 60ppm Na - 0.05 - 1000ppm*
K - 0.05 - 100ppm K - 0.05 - 1000ppm*
Li - 0.1 - 50ppm Li - 0.1 - 1000ppm*
Ca - 2.5 - 100ppm Ca - 2.5 - 1000ppm*
Ba - 10 - 100ppm Ba - 30 - 3000ppm
* High levels of salts can be problematic.
Reproducibility
<1% coefficient of variability for 20 consecutive samples over 10 minutes
(after instrument stabilisation) at concentrations of 100ppm or less.
Limits of Detection
Na - 0.02ppm K - 0.02ppm Li - 0.05ppm Ca - 1.0ppm Ba - 5ppm
Time to Stability
Less than 15 seconds after sample is introduced into the flame.

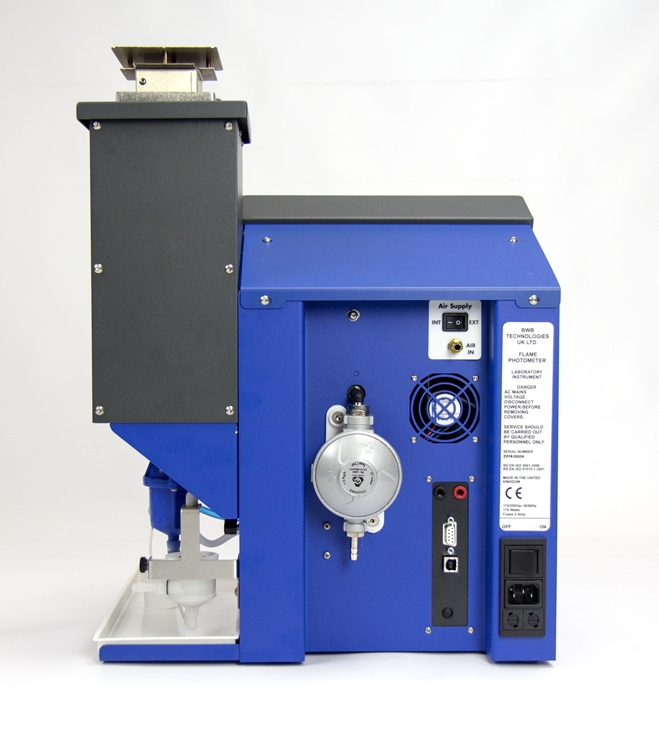

Interfaces
USB
RS232
0-1 Volt (or optionally 4-20mA)
Integrated Printer
.CSV and / or output via FP-PC Software
Drift
Less than 1% per 30 minutes after instrument stabilisation.
Specifity
Na/K/Li = <0.5% to each other when equal in concentration at <100ppm.
Number of Parameters Measured
Simultaneous display of Na, K, Ca, Li, Ba.
Size
Instrument = 51cm high x 38cm wide x 41cm deep (20in x 15in x 16in)
Shipping = 55cm high x 47cm wide x 62cm deep (21.6in x 18.5in x 24.4in)
Weight
Instrument = 17kg (38 lbs) Shipping = 25kg (55 lbs)
